PTC CREO -sweep, helical sweep ,swept blend (PART 1)

Hi guys how are you all ...
I'm back with my 2nd tutorial on CREO

Let me first tell you something about working directory....

What is working directory?

It is the designated location for opening and saving files.

Some methods are used to define new working directory such as :-

 1)From the folder tree or web browser:-

-->Right-click the folder that is to be the new working directory and be the new working directory and select set working directory.

2)File menu:-

--> click file->manage session->select working directory.

3)File open dialog box:-

-->right click the folder that is to be the new working directory and select set working directory.

In this tutorial we will be discussing  about the below mentioned topics:-

 1st topic is sweep

 2nd topic is helical sweep

 3rd topic is swept blend

What is sweep?????

Sweep option extrudes a section along a defined path called a trajectory for creating a sweep you have to define OR create a section and path.

What is helical sweep?????

Helical sweep command extrudes a section along a helical trajectory.for this command you have to define a trajectory that will specify the shape and height of the helix. Mainly used to creating helical spring and threads.

What is swept blends??????

Swept blends feature in accombination of both sweep and blend.To create the swept blend feature you have to define the origin trajectory and multiply the sections.

Lets see each of this features of 3D modeling one by one.....

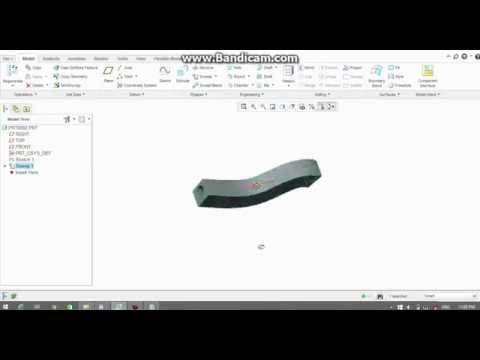

Tutorial of SWEEP is shown below.....

In my upcoming post I will be continuing this discussion and will be providing tutorials on helical sweep & swept blends.

  So until then ..
BYE BYE!!!!
